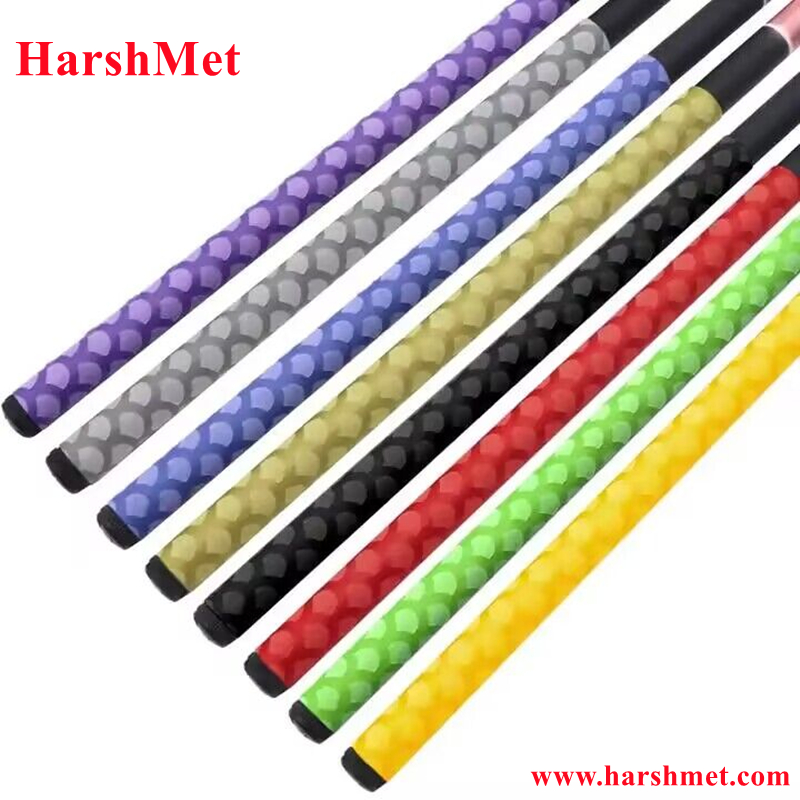

Polyolefin tubing with skidproof figured surface, used for various fishing tackles, sport fittings, and equipments and commodities with hand device.

Features

● Good abrasion resistant and anti-skid performance

● High flexibility

● Quick installation

● Continuous operating temperature:-55℃-125℃

● Shrink temperature: started at 70℃, full recovery at 110℃

● Standard color: Black, Red, Yellow, Green, Blue

Technical  Data

Property	Test Method	Typical Performance
Tensile Strength(MPa)	ASTM D2671	≥10.4
Elongation(%)	ASTM D2671	≥200

Dimensions

Size	Expanded		After Recovery		Standard Package M/pc
mm	Inner Diameter mm	Wall Thickness mm	Inner Diameter  mm	Wall Thickness mm
15	15	0.45±0.15	8.0	0.85±0.15	1.0
18	18	0.45±0.15	10.0	0.85±0.15	1.0
20	20	0.50±0.15	11.0	0.90±0.15	1.0,1.6
22	22	0.50±0.15	12.5	0.90±0.15	1.0,1.6
25	25	0.50±0.15	14.5	1.00±0.15	1.0,1.6
28	28	0.50±0.15	15.5	1.00±0.15	1.0,1.6
30	30	0.60±0.15	17.5	1.20±0.15	1.0,1.6
35	35	0.60±0.15	20.0	1.20±0.15	1.0,1.6
40	40	0.60±0.15	23.0	1.20±0.15	1.0,1.6
45	45	0.65±0.15	25.0	1.25±0.15	1.0,1.6
50	50	0.65±0.15	28.0	1.25±0.15	1.0,1.6
